Defining a Domain Model

Developing a persistent application begins with defining a domain model. A domain model consists of a number of entities (classes) and relationships between them.

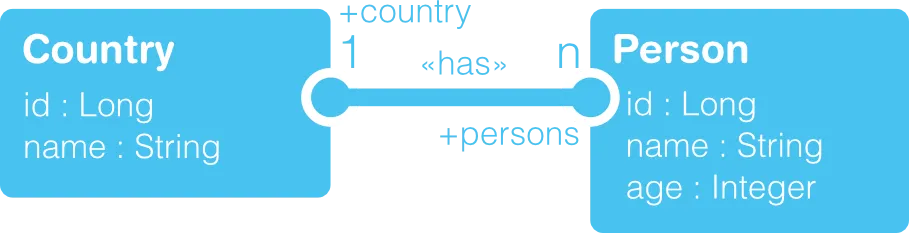

A Domain Model illustrates a simple domain model as a UML class diagram. It has two entities: Country and Person. They have a "country has persons" relationship. This is a one-to-many relationship with one country having many persons, each of which belongs to just one country.

A Domain Model

Realized in Java, the classes are as follows:

public class Country {
    private Long   id;
    private String name;
    private Set<Person> persons;

    ... setters and getters ...
}

public class Person {
    private Long    id;
    private String  name;
    private Integer age;
    private Country country;

    ... setters and getters ...
}

You should make the classes proper beans by defining a default constructor and implementing the Serializable interface. A default constructor is required by the JPA entity manager for instantiating entities. Having the classes serializable is not required but often useful for other reasons.

After you have a basic domain model, you need to define the entity relationship metadata by annotating the classes.

Persistence Metadata

The entity relationships are defined with metadata. The metadata can be defined in an XML metadata file or with Java annotations defined in the javax.persistence package. With Vaadin JPAContainer, you need to provide the metadata as annotations.

For example, if we look at the Person class in the JPAContainer AddressBook Demo, we define various database-related metadata for the member variables of a class:

@Entity
public class Person {
    @Id
    @GeneratedValue(strategy = GenerationType.AUTO)
    private Long    id;

    private String  name;
    private Integer age;

    @ManyToOne
    private Country country;

The JPA implementation uses reflection to read the annotations and defines a database model automatically from the class definitions.

Let us look at some of the basic JPA metadata annotations. The annotations are defined in the javax.persistence package. Please refer to JPA reference documentation for the complete list of possible annotations.

Annotation: @Entity

Each class that is enabled as a persistent entity must have the @Entity annotation.

@Entity
public class Country {

Annotation: @Id

Entities must have an identifier that is used as the primary key for the table. It is used for various purposes in database queries, most commonly for joining tables.

@Id
@GeneratedValue(strategy = GenerationType.AUTO)
private Long id;

The identifier is generated automatically in the database. The strategy for generating the identifier is defined with the @GeneratedValue annotation. Any generation type should work.

Annotation: @OneToOne

The @OneToOne annotation describes a one-to-one relationship where each entity of one type is associated with exactly one entity of another type. For example, the postal address of a person could be given as such.

@OneToOne
private Address address;

When using the JPAContainer FieldFactory to automatically create fields for a form, the @OneToOne relationship generates a nested Form to edit the data. See "Automatic Form Generation" for more details.

Annotation: @Embedded

Just as with the @OneToOne annotation, @Embedded describes a one-to-one relationship, but says that the referenced entity should be stored as columns in the same table as the referencing entity.

@Embedded
private Address address;

The referenced entity class must have @Embeddable annotation.

The JPAContainer FieldFactory generates a nested Form for @Embedded, just as with @OneToOne.

Annotation: @OneToMany

The Country entity in the domain model has a one-to-many relationship with the Person entity ("country has persons"). This relationship is represented with the @OneToMany annotation. The mappedBy parameter names the corresponding back-reference in the Person entity.

@OneToMany(mappedBy = "country")
private Set<Person> persons;

When using the JPAContainer FieldFactory to automatically create fields for a form, the @OneToMany relationship generates a MasterDetailEditor for editing the items. See "Automatic Form Generation" for more details.

Annotation: @ElementCollection

The @ElementCollection annotation can be used for one-to-many relationships to a collection of basic values such as String or Integer, or to entities annotated as @Embeddable. The referenced entities are stored in a separate table defined with a @CollectionTable annotation.

@ElementCollection
@CollectionTable(
    name="OLDPEOPLE",
    joinColumns=@JoinColumn(name="COUNTRY_ID"))
private Set<Person> persons;

JPAContainer FieldFactory generates a MasterDetailEditor for the @ElementCollection relationship, just as with @OneToMany.

Annotation: @ManyToOne

Many people can live in the same country. This would be represented with the @ManyToOne annotation in the Person class.

@ManyToOne
private Country country;

JPAContainer FieldFactory generates a NativeSelect for selecting an item from the collection. You can do so yourself as well in a custom field factory. Doing so you need to pay notice not to confuse the container between the referenced entity and its ID, which could even result in insertion of false entities in the database in some cases. You can handle conversion between an entity and the entity ID using the SingleSelectConverter as follows:

@Override
public <T extends Field> T createField(Class<?> dataType,
                                       Class<T> fieldType) {
    if (dataType == Country.class) {
       JPAContainer<Country> countries =
           JPAContainerFactory.make(Country.class, "mypunit");
       ComboBox cb = new ComboBox(null, countries);
       cb.setConverter(new SingleSelectConverter<Country>(cb));
       return (T) cb;
    }
    return super.createField(dataType, fieldType);
}

The JPAContainer FieldFactory uses the translator internally, so using it also avoids the problem.

Annotation: @Transient

JPA assumes that all entity properties are persisted. Properties that should not be persisted should be marked as transient with the @Transient annotation.

@Transient
private Boolean superDepartment;
...
@Transient
public String getHierarchicalName() {
...
