CSS Styling

Chart appearance is primarily controlled by CSS style rules. A comprehensive list of the supported style classes can be found here.

Steps for styling a chart

  1. Create a theme file (by convention this should be webapp/frontend/styles/shared-styles.html). The theme’s dom-module must declare theme-for=vaadin-chart.

  2. Declare include="vaadin-chart-default-theme" on the theme module’s style element to customize Chart’s default theme.

  3. Specify the desired CSS rules in the theme file.

  4. If multiple charts are present, each one can be specifically targeted by the host selector e.g :host(.first-chart-class).

  5. Import the theme file.

    Note
    If there are multiple theme modules only one of them should declare the include in step 2 above.

Example 1: Chart with Yellow Point Markers and Red Labels

shared-styles.html

<link rel="import" href="../bower_components/vaadin-charts/vaadin-chart-default-theme.html">

<dom-module id="css-style-example" theme-for="vaadin-chart">
  <template>
    <style include="vaadin-chart-default-theme">
      :host(.first-chart) g.highcharts-markers > .highcharts-point {
        fill: yellow;
      }

      :host(.first-chart) .highcharts-data-label text {
        fill: red;
      }
    </style>
  </template>
</dom-module>

CssStyleExample.java

@HtmlImport("frontend://styles/shared-styles.html")
public class CssStyleExample extends Div {

    public CssStyleExample() {
        Chart chart = new Chart();
        Configuration configuration = chart.getConfiguration();

        configuration.getChart().setType(ChartType.LINE);

        configuration.getxAxis().setCategories("Jan", "Feb", "Mar", "Apr");

        DataSeries ds = new DataSeries();
        ds.setData(7.0, 6.9, 9.5, 14.5);

        DataLabels callout = new DataLabels(true);
        callout.setShape(Shape.CALLOUT);
        callout.setY(-12);
        ds.get(1).setDataLabels(callout);
        ds.get(2).setDataLabels(callout);
        configuration.addSeries(ds);

        chart.addClassName("first-chart");
        add(chart);
    }
}



Chart with Yellow Point Markers and Red Labels

Example 2: Exposing a Chart element in Java for CSS Styling

shared-styles.html

<link rel="import" href="../bower_components/vaadin-charts/vaadin-chart-default-theme.html">

<dom-module id="css-style-example" theme-for="vaadin-chart">
  <template>
    <style include="vaadin-chart-default-theme">
      .huge-axis {
        fill: red;
        font-size: xx-large;
      }
    </style>
  </template>
</dom-module>

CssStyleExample.java

@HtmlImport("frontend://styles/shared-styles.html")
public class CssStyleExample extends Div {

    public CssStyleExample() {
        Chart chart = new Chart();
        Configuration configuration = chart.getConfiguration();

        DataSeries ds = new DataSeries();
        ds.setData(7.0, 6.9, 9.5, 14.5);
        configuration.addSeries(ds);

        configuration.getxAxis().setCategories("Jan", "Feb", "Mar", "Apr");

        // Expose the X-Axis for CSS targeting.
        configuration.getxAxis().setClassName("huge-axis");

        add(chart);
    }
}

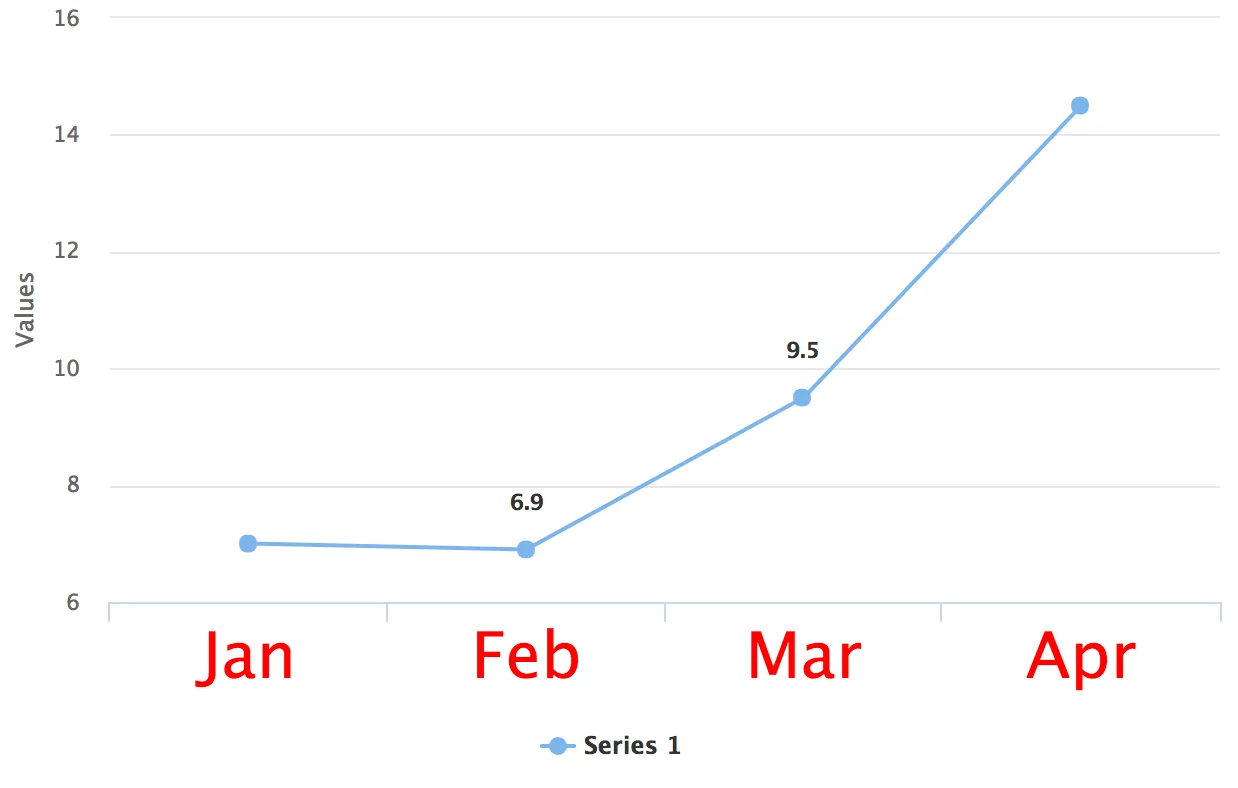

Chart with a Huge X-Axis
