Hi, Vaadin community! I’ve been following Vaadin since version 7, but I’ve never actually published or shared anything I’ve built. When I discovered the “I Build This” section, I was genuinely excited to finally share a project I’ve been working on for the past two years. I hope you’ll find it interesting — and I’d love to hear your feedback!
Short Description
A personal project inspired by the mobile game Township . Given a set of orders, it derives the full production dependency chain and uses Timefold to compute an optimal schedule — then renders the entire result as an interactive timeline in a Vaadin UI.
Why This Is Interesting (Vaadin Perspective)
This project is essentially a Vaadin-first application : the solver runs in the background, but everything the user sees and interacts with lives in Vaadin. Here’s what I got to explore:
| Vaadin Feature | How I Used It |
|---|---|
| Vaadin Signals | Reactive UI state — solver progress, schedule updates, and UI reactivity without manual polling or push configuration boilerplate. |
| Custom Vaadin Components | Built reusable components for the scheduling view, order management, and timeline breakdown. |
| Lit-based Web Components | Created custom elements with Lit and integrated them into the Vaadin component tree. |
| vis-timeline integration | Embedded the vis-timeline library to render a Gantt-chart-style view of the solved schedule (timeline → factory → task). |
| Vaadin + Spring Boot | Standard Vaadin Platform setup with Spring Boot backend and H2 in-memory DB. |
What the App Does
- Data ingestion – On first run, scrapes product/factory/BOM data from the public Township Fandom Wiki (or parses an offline

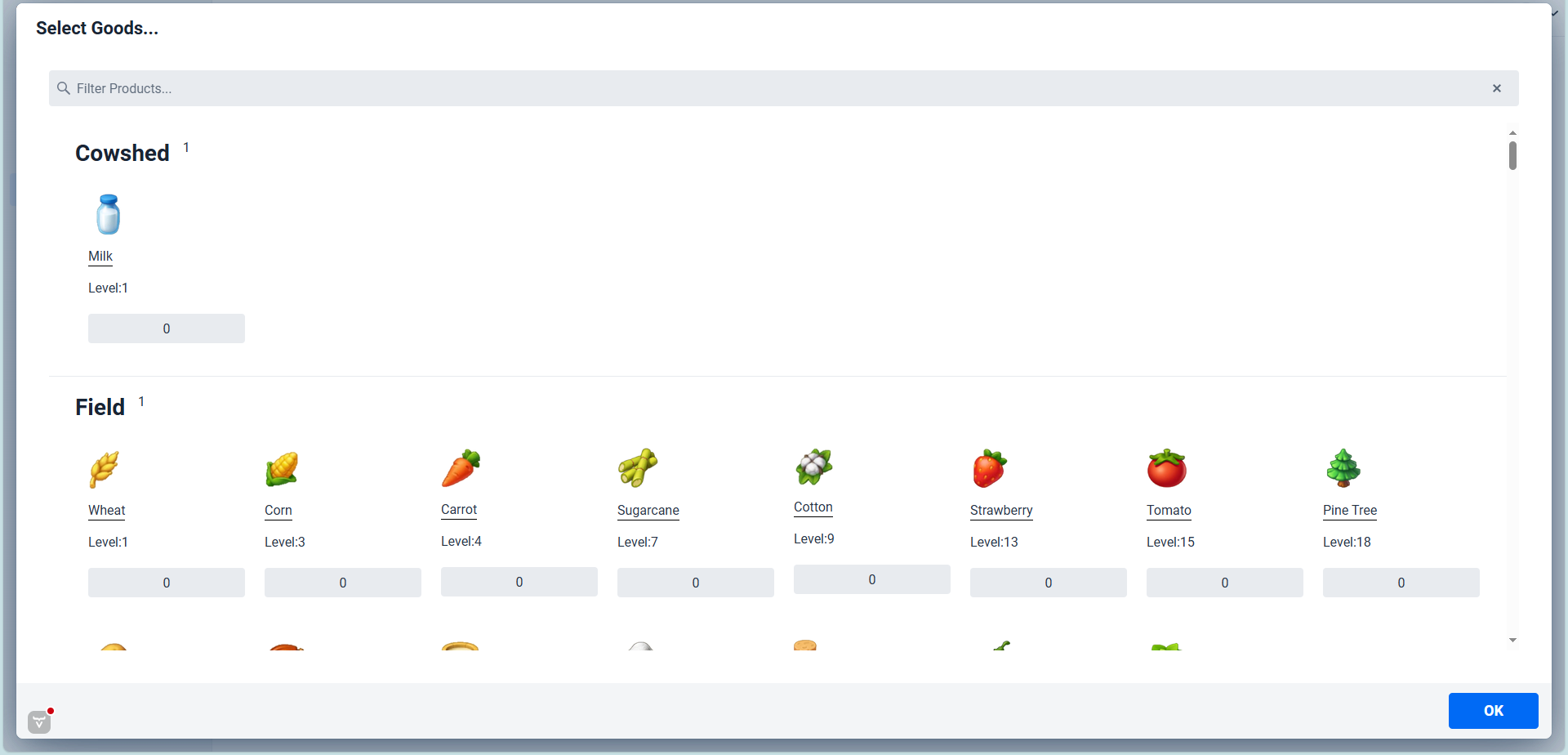

.mhtml), then stores it via JPA. - Order management – Create, delete, and query orders (the input for scheduling).
- Scheduling – Run the Timefold solver to assign each production task a date/time slot and a factory, respecting hard and soft constraints.

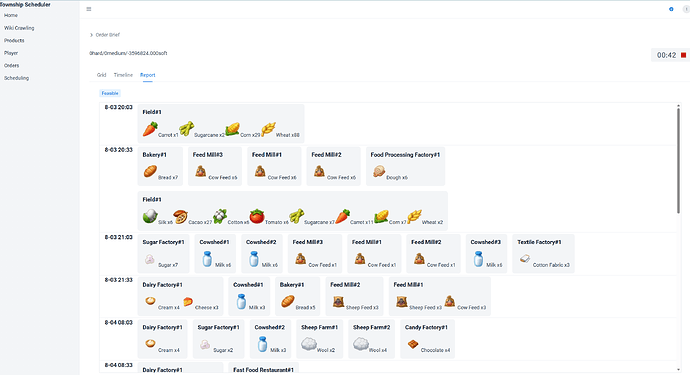

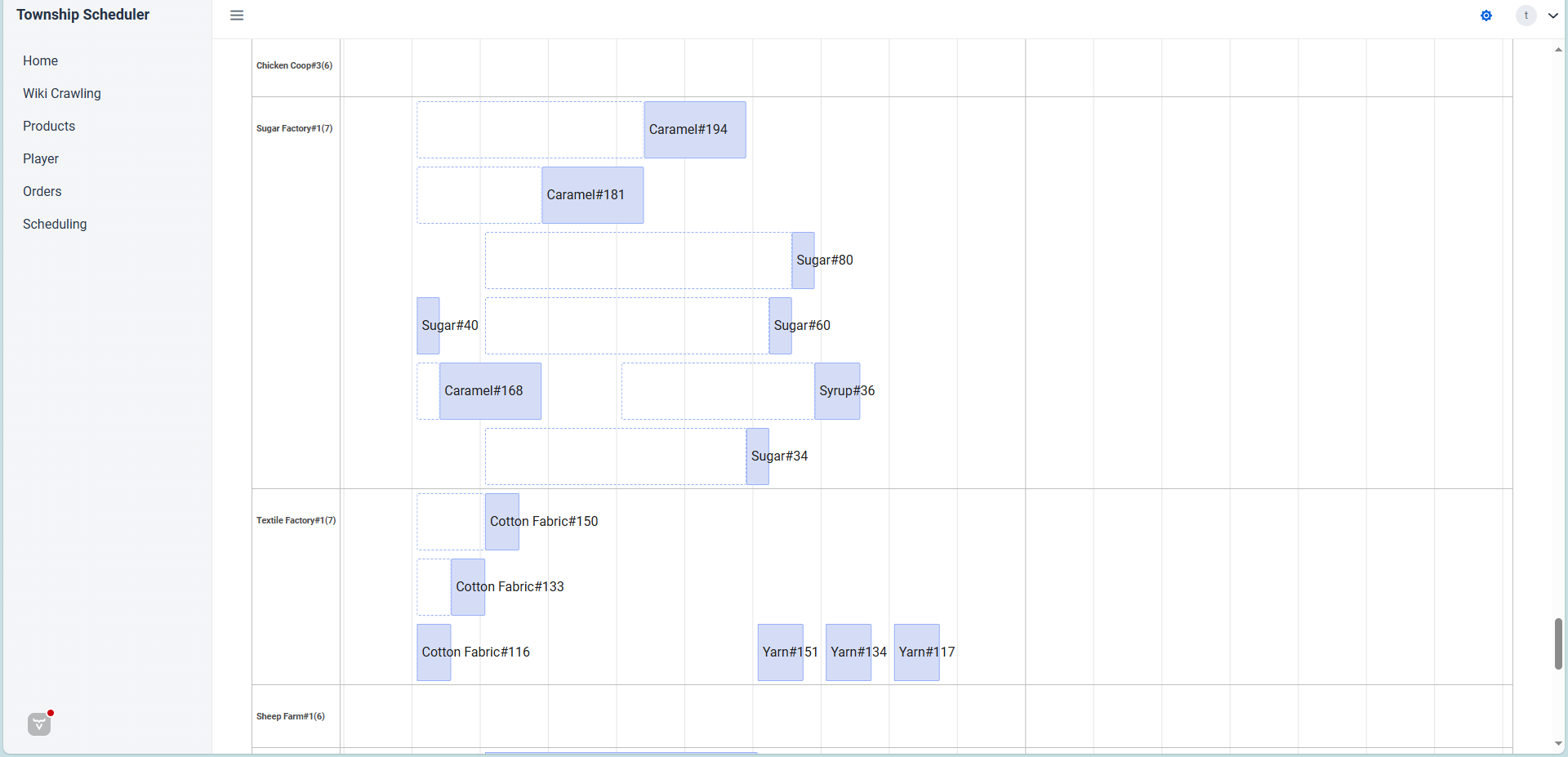

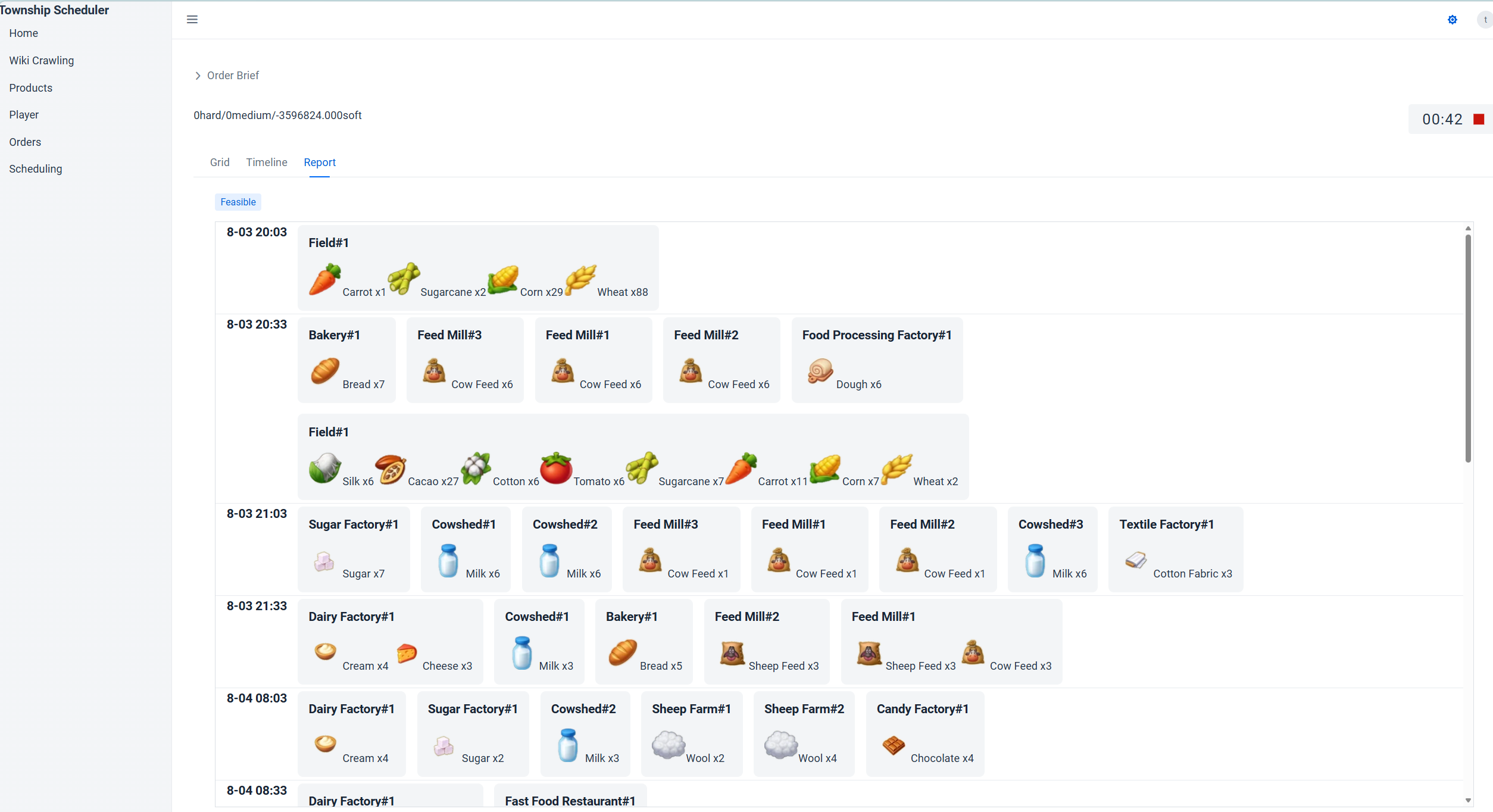

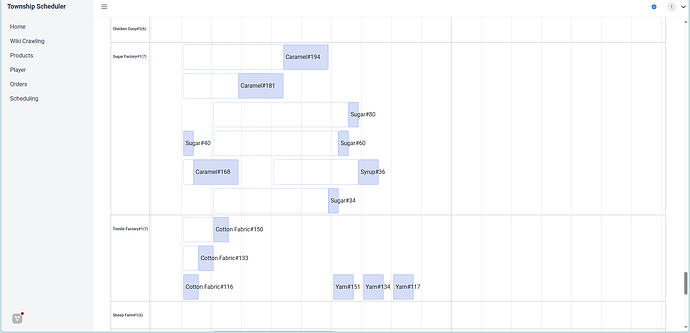

- Visualization – Display the solved schedule as a timeline → factory → task breakdown, with a Gantt chart powered by
vis-timeline.
Tech Stack
Spring Boot · Vaadin Platform · Timefold · H2 · Maven
Links
- GitHub: GitHub - zzk0803/TownshipScheduler: 以游戏梦想城镇(Township)为背景的排程排产玩具项目，依据玩家给定的订单计算需要准备的物品及其生产任务，通过Timefold指派玩家执行生产安排的时间槽和工厂，同时满足相关约束 · GitHub
- Data source: Township Fandom Wiki – Goods
