Setting up VaadinWebSecurity from IdentityManagementConfiguration

General
1

I started with an app that I built from the Vaadin startup on the web… I added views that require specific roles as I will need this as I build.

Roles were not applying as expected even with the @RolesAllowed directive. I have started down the Vaadin Web security path via the tutorial, but I am now getting a build error…

Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.support.BeanDefinitionOverrideException: Invalid bean definition with name 'VaadinSecurityFilterChainBean' defined in BeanDefinition defined in class path resource [com/vaadin/controlcenter/starter/idm/IdentityManagementConfiguration.class]:

How do I get this configured to properly apply roles and allow logins/logouts?

It is also important that I note here that this is my first java project… I’m jumping in the deep end.

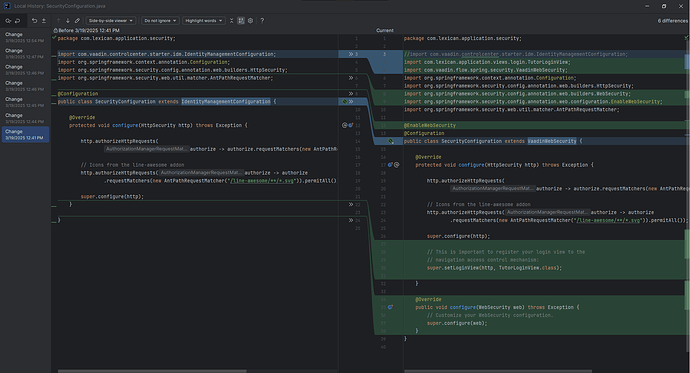

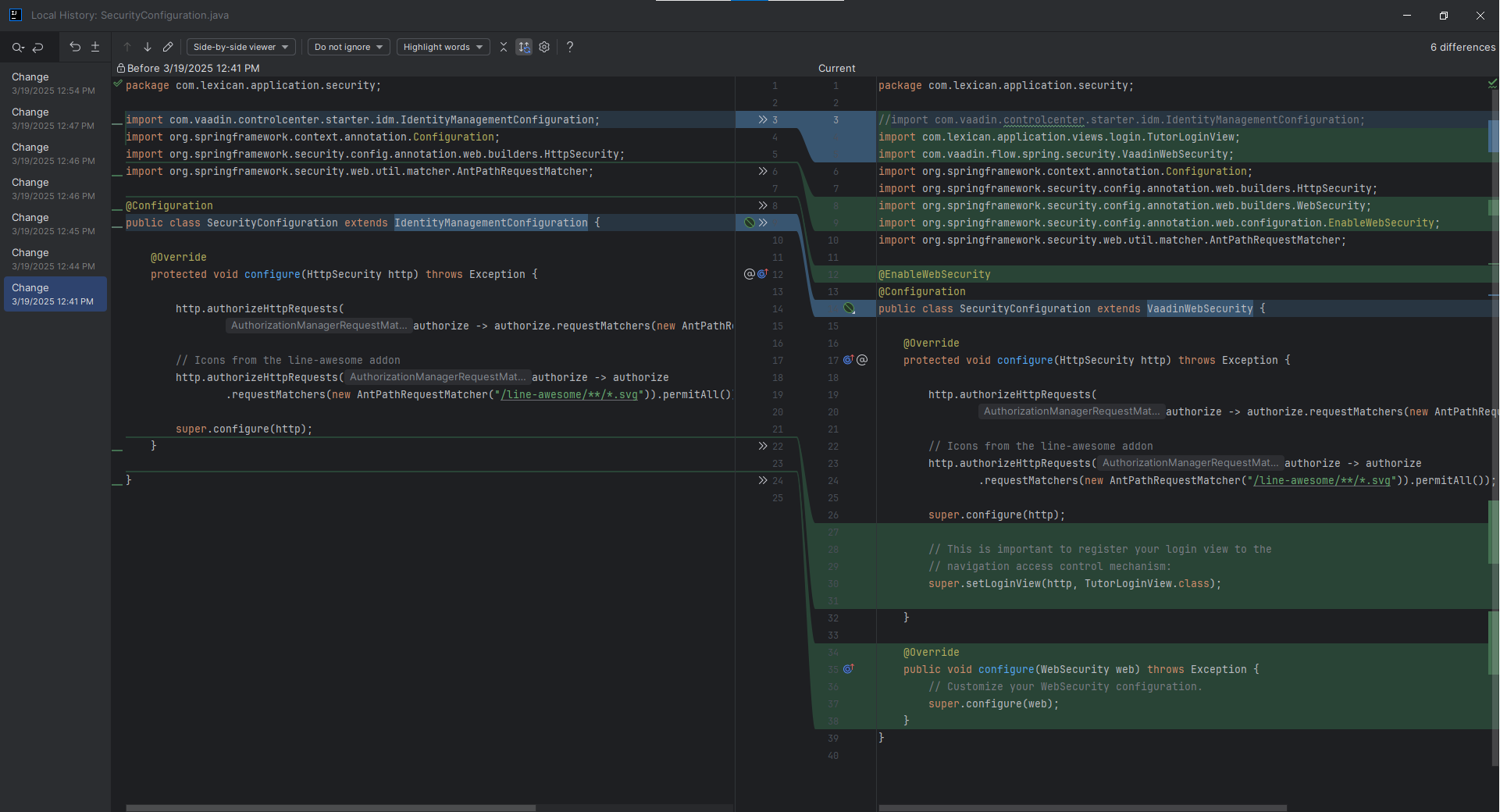

Attached are the changes I made to the SecurityConfiguration that came in the downloaded project.

vaadin-web-security
vaadin-web-security1921×1040 193 KB

pom.xml attached as well…

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <!-- Project from https://start.vaadin.com/project/696a03d6-682a-47ff-aa25-26a40a96fedc -->
    <groupId>com.lexican.application</groupId>
    <artifactId>lexican</artifactId>
    <name>Lexican</name>
    <version>1.0-SNAPSHOT</version>
    <packaging>jar</packaging>

    <properties>
        <maven.compiler.source>21</maven.compiler.source>
        <maven.compiler.target>21</maven.compiler.target>
        <java.version>21</java.version>
        <vaadin.version>24.6.6</vaadin.version>
    </properties>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.4.3</version>
    </parent>

    <repositories>
        <!-- Main Maven repository -->
        <repository>
            <id>central</id>
            <url>https://repo.maven.apache.org/maven2</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
        <repository>
            <id>Vaadin Directory</id>
            <url>https://maven.vaadin.com/vaadin-addons</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
    </repositories>

    <pluginRepositories>
        <!-- Main Maven repository -->
        <pluginRepository>
            <id>central</id>
            <url>https://repo.maven.apache.org/maven2</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </pluginRepository>
    </pluginRepositories>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.vaadin</groupId>
                <artifactId>vaadin-bom</artifactId>
                <version>${vaadin.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>com.vaadin</groupId>
            <!-- Replace artifactId with vaadin-core to use only free components -->
            <artifactId>vaadin</artifactId>
            <exclusions>
                <!-- Webjars are only needed when running in Vaadin 13 compatibility mode -->
                <exclusion>
                    <groupId>com.vaadin.webjar</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.webjars.bowergithub.insites</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.webjars.bowergithub.polymer</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.webjars.bowergithub.polymerelements</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.webjars.bowergithub.vaadin</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.webjars.bowergithub.webcomponents</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.vaadin</groupId>
            <artifactId>vaadin-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.parttio</groupId>
            <artifactId>line-awesome</artifactId>
            <version>2.1.0</version>
        </dependency>

        <dependency>
            <groupId>com.vaadin</groupId>
            <artifactId>control-center-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-validation</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.vaadin</groupId>
            <artifactId>vaadin-testbench-junit5</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <defaultGoal>spring-boot:run</defaultGoal>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>com.diffplug.spotless</groupId>
                <artifactId>spotless-maven-plugin</artifactId>
                <version>2.43.0</version>
                <configuration>
                    <java>
                        <eclipse>
                            <version>4.33</version>
                            <file>${project.basedir}/eclipse-formatter.xml</file>
                        </eclipse>
                    </java>
                    <!-- Uncomment to format TypeScript files
                        <typescript>
                        <includes>
                            <include>src/main/frontend/**/*.ts</include>
                            <include>src/main/frontend/**/*.tsx</include>
                        </includes>
                        <excludes>
                            <exclude>src/main/frontend/generated/**</exclude>
                        </excludes>
                        <prettier>
                            <prettierVersion>3.3.3</prettierVersion>
                            <configFile>.prettierrc.json</configFile>
                        </prettier>
                    </typescript>
                -->
                </configuration>
            </plugin>
            <plugin>
                <groupId>com.vaadin</groupId>
                <artifactId>vaadin-maven-plugin</artifactId>
                <version>${vaadin.version}</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>prepare-frontend</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>21</source>
                    <target>21</target>
                    <compilerArgs>--enable-preview</compilerArgs>
                </configuration>
            </plugin>
        </plugins>
    </build>

    <profiles>
        <profile>
            <!-- Production mode is activated using -Pproduction -->
            <id>production</id>
            <dependencies>
                <!-- Exclude development dependencies from production -->
                <dependency>
                    <groupId>com.vaadin</groupId>
                    <artifactId>vaadin-core</artifactId>
                    <exclusions>
                        <exclusion>
                            <groupId>com.vaadin</groupId>
                            <artifactId>vaadin-dev</artifactId>
                        </exclusion>
                    </exclusions>
                </dependency>
            </dependencies>
            <build>
                <plugins>
                    <plugin>
                        <groupId>com.vaadin</groupId>
                        <artifactId>vaadin-maven-plugin</artifactId>
                        <version>${vaadin.version}</version>
                        <executions>
                            <execution>
                                <goals>
                                    <goal>build-frontend</goal>
                                </goals>
                                <phase>compile</phase>
                            </execution>
                        </executions>
                    </plugin>
                </plugins>
            </build>
        </profile>

        <profile>
            <id>it</id>
            <build>
                <plugins>
                    <plugin>
                        <groupId>org.springframework.boot</groupId>
                        <artifactId>spring-boot-maven-plugin</artifactId>
                        <executions>
                            <execution>
                                <id>start-spring-boot</id>
                                <phase>pre-integration-test</phase>
                                <goals>
                                    <goal>start</goal>
                                </goals>
                            </execution>
                            <execution>
                                <id>stop-spring-boot</id>
                                <phase>post-integration-test</phase>
                                <goals>
                                    <goal>stop</goal>
                                </goals>
                            </execution>
                        </executions>
                    </plugin>

                    <!-- Runs the integration tests (*IT) after the server is started -->
                    <plugin>
                        <groupId>org.apache.maven.plugins</groupId>
                        <artifactId>maven-failsafe-plugin</artifactId>
                        <executions>
                            <execution>
                                <goals>
                                    <goal>integration-test</goal>
                                    <goal>verify</goal>
                                </goals>
                            </execution>
                        </executions>
                        <configuration>
                            <trimStackTrace>false</trimStackTrace>
                            <enableAssertions>true</enableAssertions>
                        </configuration>
                    </plugin>
                </plugins>
            </build>
        </profile>

    </profiles>
</project>

Need anything else?

2

I would suggest to remove this and restart

3

Ok, I did that and it got past the build… but the browser now renders this :thinking: …

There was an exception while trying to navigate to ‘’ with the root cause ‘java.lang.ClassNotFoundException: org.springframework.security.oauth2.core.oidc.user.OidcUser’

org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'com.lexican.application.views.MainLayout': Failed to instantiate [com.lexican.application.views.MainLayout]: Constructor threw exception
	at org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:321) ...

Can you explain why you suggested removing that dependency?

4

Well… looks like the code that got generated for you already depends on Oauth2 related stuff… so you need to add


<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-oauth2-client</artifactId>
</dependency>

which was probably transitive within the removed dependency.

I suggested to remove that dependency because it’s normally not needed and I was kinda surprised to see it in a project from start.vaadin.com - @marcoc_753 do you happen to have some insights on this?

1 Like
5

Control Center is an optional dependency that you can select when downloading the project from start.vaadin.com. It aims to simplify the management of Vaadin applications on Kubernetes clusters. (How to use Vaadin Control Center)

If you only want to enable OAuth2 with Vaadin, you can take a look at this documentation page How to configure Vaadin and Spring Security for OAuth2 Authentication.

1 Like
6

Thank you! That did it AND my RolesAllowed is applying as expected.

7

As a follow-up… now that this is working, it is blocking my resources from loading. All image refs are trying to redirect to the login view. How do I allow the resources to load anonymously?

8
1 Like
