Grid not showing properly in desktop/mobile view

Flow
21

Looks this is a bug. Let me explain here

22

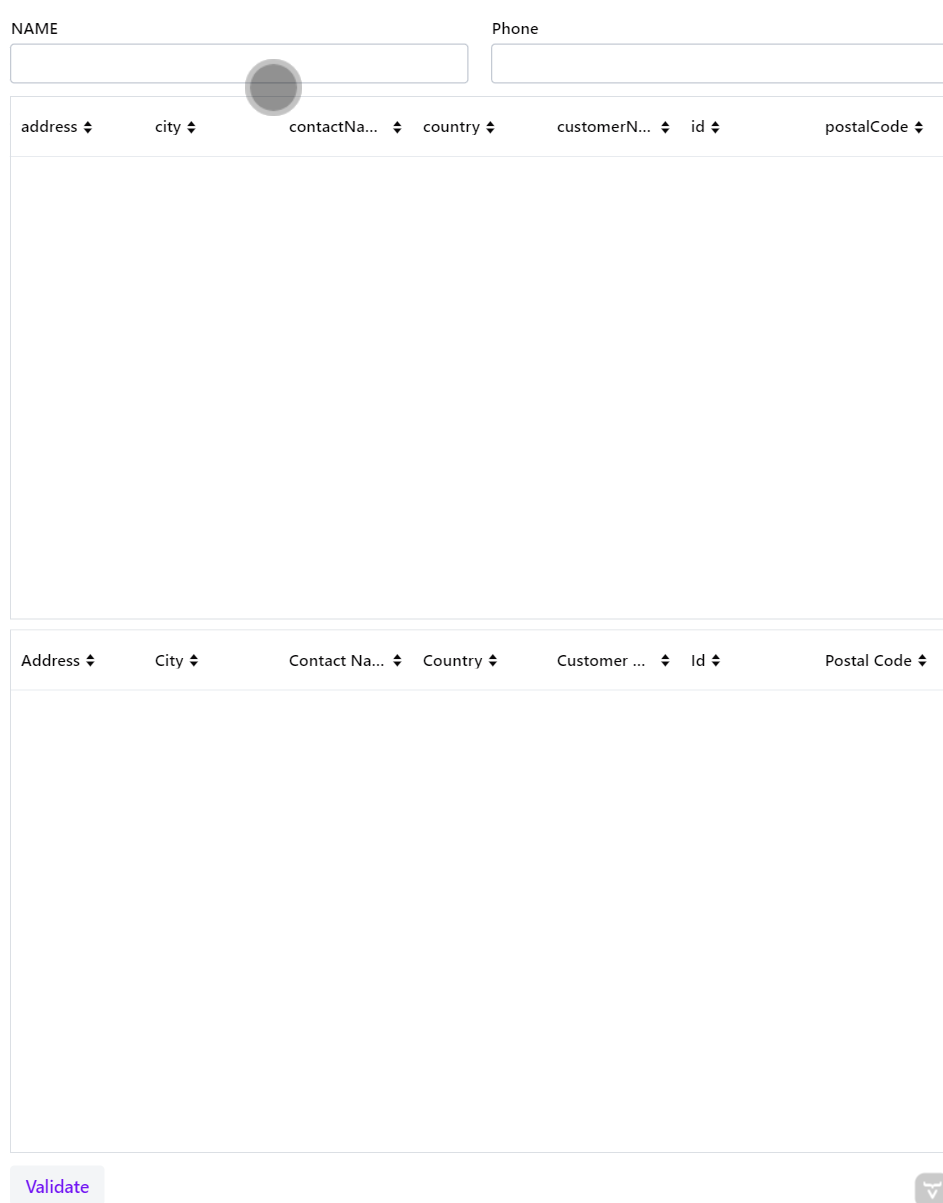

To demonstrate the issue, I’ve created a form 50 times ( so that I can see a scroller) and added two grid at the bottom and this is how it shows now

23

If I remove those 50 times form, this is how it looks

24

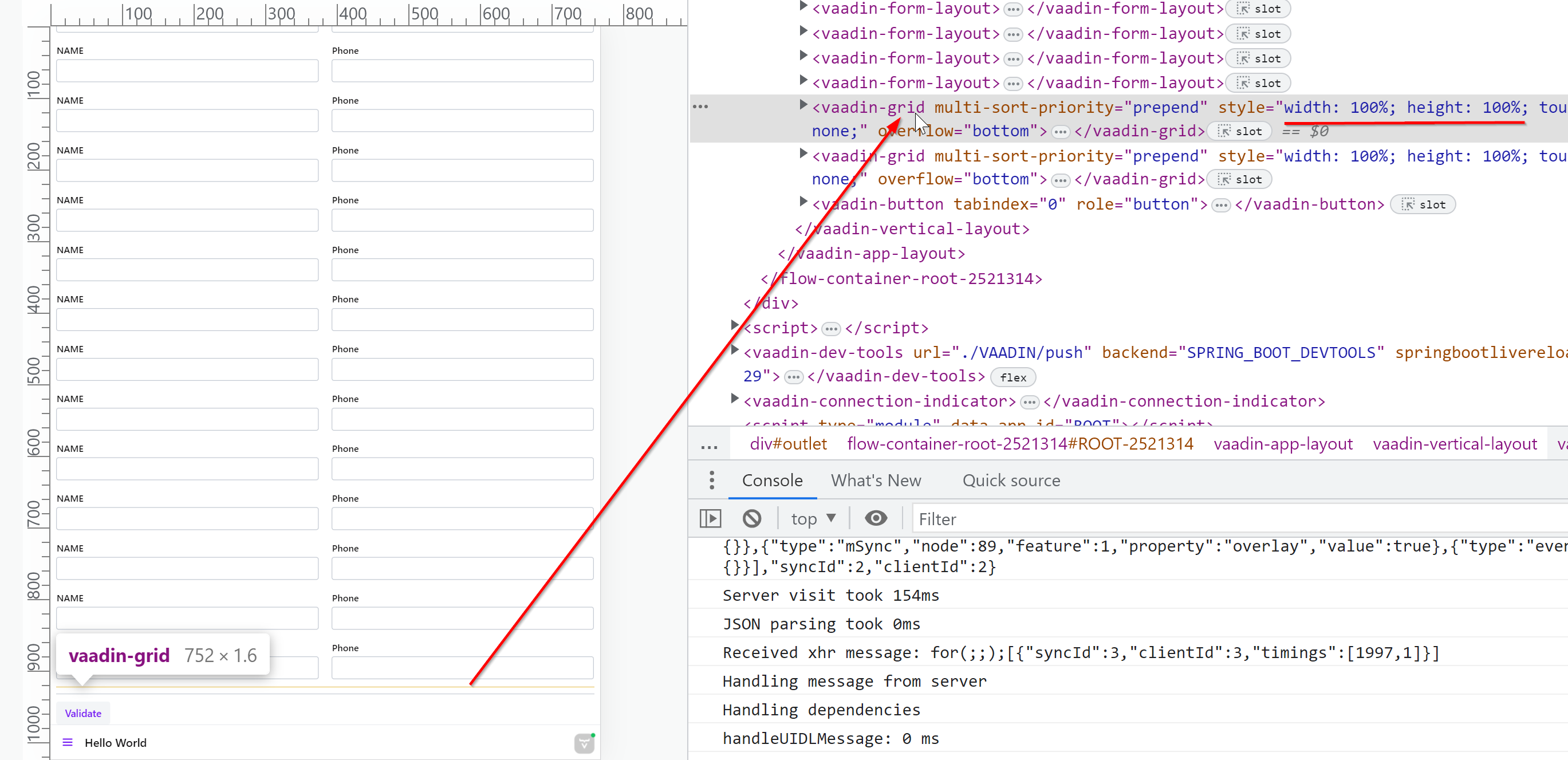

grid and its parent both are set to fullSize

25

I like Rolf’s quote here “when you set 100% height on the Grid, you’re setting 100% of nothing, which is nothing.” :grimacing: I normally don’t use the app layout, but I would think it’s related how it works to make sure the full page height is used for the drawer. Sounds like a little bit of css fiddling in the main view to do for you.

26

and this affects only the grid ?

27

All components that work like that grid when it comes to it’s height management

28

I would guess that tabsheet has a similar behavior

29

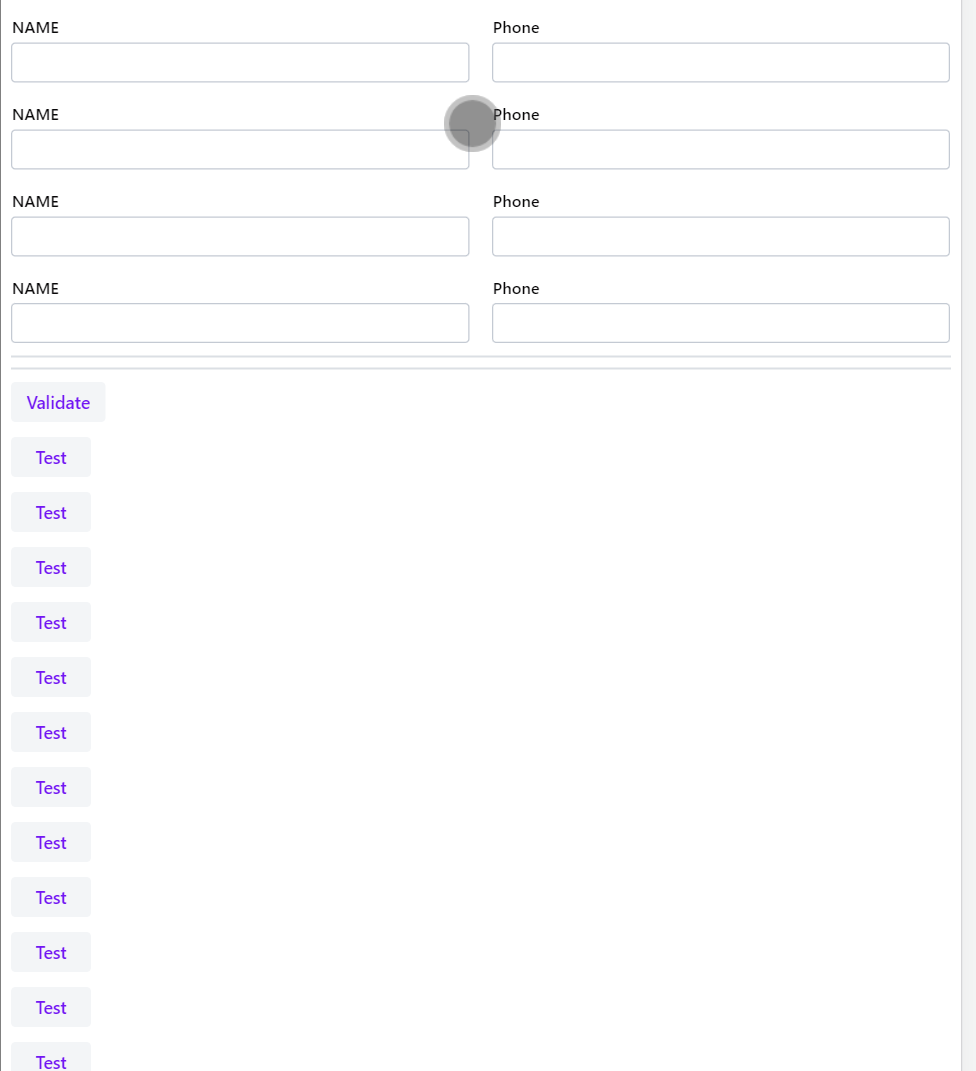

In this example, it looks only the grid is affected. I added 50 buttons after the grid and this is how it looks

30

I can see all those 50 buttons without any issues

31

Still expected. If you add setMinHeight(“300px”) the grid should also be visible again

32

I see. Let me try

33

Yep, it worked now

34

how setHeight = 100% is different from setMinHeight?

35

See this :sweat_smile: min-height works differently and takes precedence over height of “nothing” - I’m not experienced enough with CSS to explain the Problem in Detail, I just know it and how to avoid it :wink:

36

Thanks. Will wait for Rolf then. I can create an issue if he thinks right

37

ok so tell me if I’m wrong, but what I think is happening here is that:

  • you’re placing a VL with height=100% inside the AppLayout
    => so the VL stretches and shrinks to fit inside the AppLayout (it can’t be any taller than the AppLayout because it’s set to be 100% of its height)

  • then you fill the VL with a bunch of fields that take up most of the space inside it
    => there’s now just a few pixels of vertical space left in the VL

  • then you add the Grid below those fields, and set that to 100% height
    => the Grid tries to grow to the size of the VL, but as there are only a few pixels of space left, it can’t, so it only fills those few pixels of space that are available

38

exactly this is what is happening

39

my understanding was, VL can autoscroll when it finds some fields exceeding the screen view size and this is what is happening when I add buttons. I added 50 buttons and 50 forms and I see the VL automatically created a scroller page and able to see all

40

but the same is not happening for a grid
