Dynamic Table Layout

Vaadin 6 / 7 / 8 Framework UI
1

Hi Guys,

i need your help.

I am trying to build al Layout with 3 Tables. Under the first and under the last table there should be an button.
At beginning the tables are empty. wenn i add a ne item to the table, the table should grow an “push” the button a little bit more to the bottom of my form.

you understand?

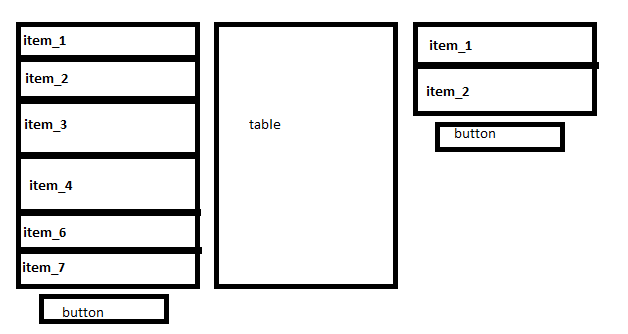

i put a draft to the attachement…

Can i solve the problem with the layout components?

My first idea:
A horizontal Layout with three vertical layouts in it. one vertical for each table…

Thank you and sorry for my bad english :=

2

Don’t know what “items” you want to push into the two outer tables, but I would just use a plain Vaadin-Table and set it’s pageSize according to the number of inserted rows. Thus making it grow as needed.

3

that sounds very good but what is the comand?

table.setHeight(???)

4

At the end of the Button.ClickListener, that inserts new Items:

table.setPageSize(table.getContainerDataSource().size());
5

thank you for your answer but there is no

table.setPageSize(..)

there is only setPageLength(,,,)

When i try table.setPageLength(table.getContainerDataSource().size()); it works.

now i want also a button in center under the table thats also is dynamic an moves with the table bottom.

6

You are doing nothing wrong, setPageLength() is the correct method; I just remembered the name wrong.

I didn’t get that, sorry.

7

sorry for my bad english

but i solved the problem.


HorizontalLayout horLayout = new HorizontalLayout();
VerticalLayout verLayout = new VerticalLayout();

tbl_src = new Table();
verLayout.addComponent(tbl_src);

Button btn = new Button("add");
verLayout.addComponent(btn);

verLayout.setComponentAlignment(btn, Alignment.TOP_CENTER);
...
table.setPageLength(table.getContainerDataSource().size());

so i´ve got a button under the table. and when i add an item to the table so the table get bigger. and the button is always under the table.
thats how i need it… :slight_smile:

thank you
