Created a full stack app archtest don't seem to work

General
1

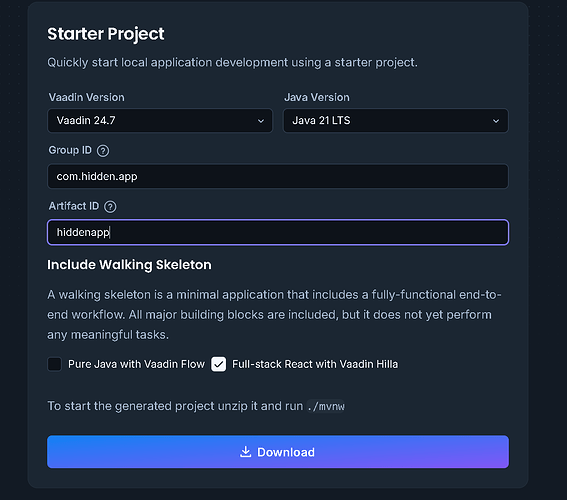

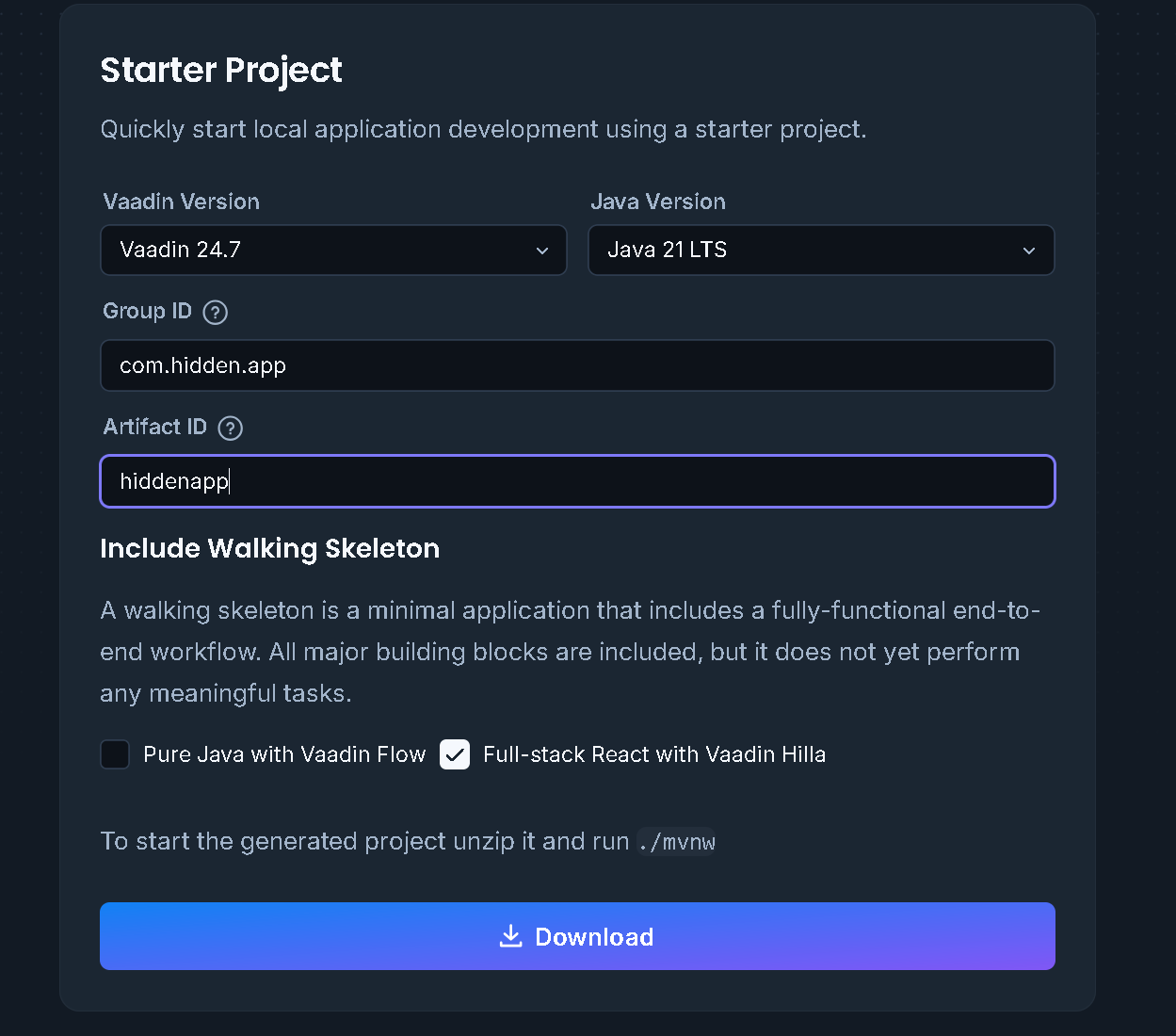

I generated a full stack app using the Create a new Vaadin app: configure views and theme selecting the check box full stack react and hilla.

The @ArchTest don’t seem to do anything or work. I tried mvn test and it says it sees the file, but with the bad rules I put in there it should not have passed. Doesn’t seem to work.

However integration test does seem to work or at least run. Using mvn -Pintegration-test integration-test.

Not sure how these tests are supposed to run, run them, and there is no docs.

[INFO] Running com.hidden.app.ArchitectureTest
23:27:56.084 [main] INFO com.tngtech.archunit.core.PluginLoader – Detected Java version 22.0.2
[INFO] Tests run: 0, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 1.853 s – in com.hidden.app.ArchitectureTest
[INFO]
[INFO] Results:
[INFO]
[INFO] Tests run: 0, Failures: 0, Errors: 0, Skipped: 0

2

Hello! I’ll have a look at the test it’s currently generating. Can you post the rules you put in there?

-Petter-

3

Thanks. I didn’t add any, just trying to run what it came with out of the box. Oh I edited the ones there, munging package names to see if a fail would occur.

Here is a bad example I also tried.

  @ArchTest
  public static final ArchRule some_test = classes().that().resideInAPackage("con.hidden").should().bePrivate();

I added a @Test and those seem to run.

  @Test
  public void some_architecture_rule() {
    JavaClasses importedClasses = new ClassFileImporter().importPackages("com.hidden");
    ArchRule rule = classes().that().resideInAPackage("com.hidden").should().notBePrivate();

    rule.check(importedClasses);
  }
4

Thanks. I just downloaded a fresh skeleton with Hilla views and ran some tests:

In the Task class, I added a method that took TaskService as a parameter:

    public void foo(TaskService service) {
    }

This resulted in the domain_model_should_not_depend_on_application_services failing.

Next, I created a new hidden package in the base package and put a public class in it. I then added the following rule to the test, which failed:

@ArchTest
public static final ArchRule hidden_classes = classes().that().resideInAPackage(BASE_PACKAGE + ".hidden..").should().notBePublic();

I then changed the public class to package private and now the test passed.

Can you please repeat these tests in your project and see if the results are the same?

6
import com.hidden.app.taskmanagement.service.TaskService;

@Entity
@Table(name = "task")
public class Task extends AbstractEntity<Long> {
  public void foo(TaskService service) {
  }

Tried first and did not fail.

7

Then I added the second with

package com.hidden.app.hidden;

public class Hidden {
}

  @ArchTest
  public static final ArchRule hidden_classes = classes().that().resideInAPackage(BASE_PACKAGE + "..hidden..").should()
      .notBePublic();

Run with .\mvn.cmd clean test

[INFO] -------------------------------------------------------
[INFO]  T E S T S
[INFO] -------------------------------------------------------
[INFO] Running com.hidden.app.ArchitectureTest
09:50:17.981 [main] INFO com.tngtech.archunit.core.PluginLoader -- Detected Java version 21.0.2
[INFO] Tests run: 0, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 2.169 s -- in com.hidden.app.ArchitectureTest
[INFO]
[INFO] Results:
[INFO]
[INFO] Tests run: 0, Failures: 0, Errors: 0, Skipped: 0
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS

image1249×1100 35.3 KB

8

I would recommend to refactore this class. I’ve heard of multiple people in the past that those static archunit sometimes just don’t execute - IDE, Maven, Junit and so on… something just doesn’t line up perfectly in the universe. Using separate normal test method should work 100% of the time and should still be fast enough

2 Likes
9

Interesting. When I run the test in the IDE, it works as expected. When I run it via Maven, I get the same result as you. I’ll dig into this.

10

It does look like Maven is not running the @ArchTest rules, whereas IntelliJ IDEA does. As @knoobie suggested, I’m refactoring them to be ordinary @Test methods. Will notify you here when the changes are published to start.vaadin.com.

1 Like
11

The refactored architecture tests are now live. @jpywtora please try to download a new skeleton and see if they work better now.

-Petter-

12

I will check it out asap, should be tomorrow, California. I am also a Neovim user along with the cli on Windows.

13

Nice refactor and validated that for me all tests pass now from the CLI for the generated started. Thank you

1 Like
