Crud UI Add-on

alejandro.du · December 12, 2018, 5:05pm

Florian Delas:
Hi Alejandro,

How to fix the number of columns of the form?
I want to have 3 columns to edit/create my bean.
Thanks,

If Vaadin 8, use a GridLayoutCrudFormFactory. You can specify the number of columns and rows in the constructor. If Vaadin 10+, use the constructor of DefaultCrudFormFactory to specify ResponsiveSteps.

alejandro.du · December 12, 2018, 5:08pm

Gianluigi Ferraris:
Another question:
should be possible to visually group some of the formfactory fields together ?
In that case , what do you suggest to achieve it , by css, components …
Thank you.

This is not currently supported by the add-on. One way is to extend AbstractCrudFormFactory to create any composition you wish.

alejandro.du · December 12, 2018, 5:21pm

Deepak Chainani:
Hello Alejandro,

For one of my requirement, in the CRUD Form Layout I have a couple ComboBoxProviders added and few text boxes. As per the requirement while selecting a value from the one of the ComboBox I wish to disable 2 text fields and if the value again is changed for the combo box I need to again enable the text boxes.

I tried the following code with component ComboBox instead of the ComboBoxProvider:
gridData.getCrudFormFactory().setFieldProvider(WebGuiConstants.REPAY_DEDUCTION_TYPE_FLD, () -> {
			ComboBox<AdvanceDeductionType> comboBox = new ComboBox<>(WebGuiConstants.REPAY_DEDUCTION_TYPE_FLD,
					Arrays.asList(AdvanceDeductionType.values()));
			comboBox.addValueChangeListener(event -> {
				if (event.getSource().isEmpty()) {
					gridData.getCrudFormFactory().setDisabledProperties("");
					return;
				} else
					switch (event.getValue()) {
					case EMI:
						gridData.getCrudFormFactory().setDisabledProperties("");
						break;
					case ONETIME:
						gridData.getCrudFormFactory().setDisabledProperties("repayDeductionTerm",
								"fixedDeductionAmount");
						break;

					}
			});
			return comboBox;
		});
Please help me with sample code for the same.

Unfortunatelly, there’s not good API to achive this. Maybe you can try something like this, but I’m not sure if this would work well:

TextField someField = new TextField("Some field");
        formFactory.setFieldProvider("someField", () -> someField);

        formFactory.setFieldProvider("anotherField", () -> {
            Checkbox activeField = new Checkbox("Active");
            activeField.addValueChangeListener(v -> someField.setEnabled(false));
            return activeField;
        });

Deepak73 · December 16, 2018, 9:34am

Alejandro Duarte:
Deepak Chainani:
Hello Alejandro,

For one of my requirement, in the CRUD Form Layout I have a couple ComboBoxProviders added and few text boxes. As per the requirement while selecting a value from the one of the ComboBox I wish to disable 2 text fields and if the value again is changed for the combo box I need to again enable the text boxes.

I tried the following code with component ComboBox instead of the ComboBoxProvider:
gridData.getCrudFormFactory().setFieldProvider(WebGuiConstants.REPAY_DEDUCTION_TYPE_FLD, () -> {
			ComboBox<AdvanceDeductionType> comboBox = new ComboBox<>(WebGuiConstants.REPAY_DEDUCTION_TYPE_FLD,
					Arrays.asList(AdvanceDeductionType.values()));
			comboBox.addValueChangeListener(event -> {
				if (event.getSource().isEmpty()) {
					gridData.getCrudFormFactory().setDisabledProperties("");
					return;
				} else
					switch (event.getValue()) {
					case EMI:
						gridData.getCrudFormFactory().setDisabledProperties("");
						break;
					case ONETIME:
						gridData.getCrudFormFactory().setDisabledProperties("repayDeductionTerm",
								"fixedDeductionAmount");
						break;

					}
			});
			return comboBox;
		});
Please help me with sample code for the same.
Unfortunatelly, there’s not good API to achive this. Maybe you can try something like this, but I’m not sure if this would work well:
TextField someField = new TextField("Some field");
        formFactory.setFieldProvider("someField", () -> someField);

        formFactory.setFieldProvider("anotherField", () -> {
            Checkbox activeField = new Checkbox("Active");
            activeField.addValueChangeListener(v -> someField.setEnabled(false));
            return activeField;
        });

This works! Thanks for the help

Deepak73 · December 18, 2018, 3:43am

Deepak Chainani:
Alejandro Duarte:

Unfortunatelly, there’s not good API to achive this. Maybe you can try something like this, but I’m not sure if this would work well:
TextField someField = new TextField("Some field");
        formFactory.setFieldProvider("someField", () -> someField);

        formFactory.setFieldProvider("anotherField", () -> {
            Checkbox activeField = new Checkbox("Active");
            activeField.addValueChangeListener(v -> someField.setEnabled(false));
            return activeField;
        });
This works! Thanks for the help

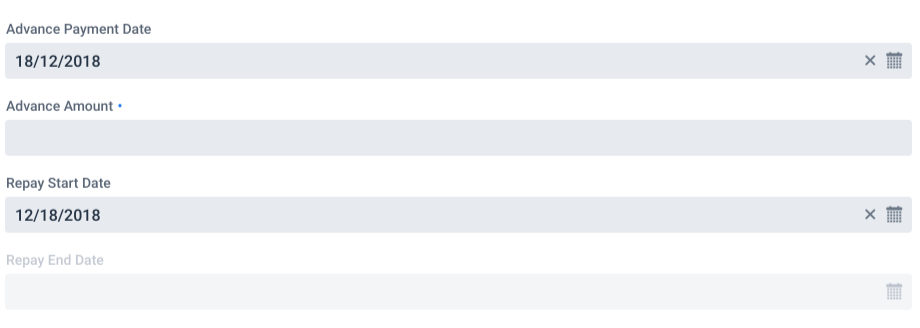

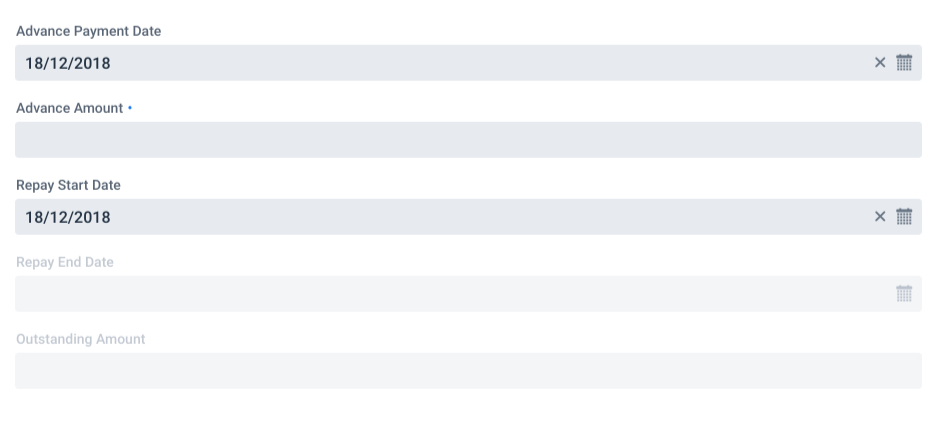

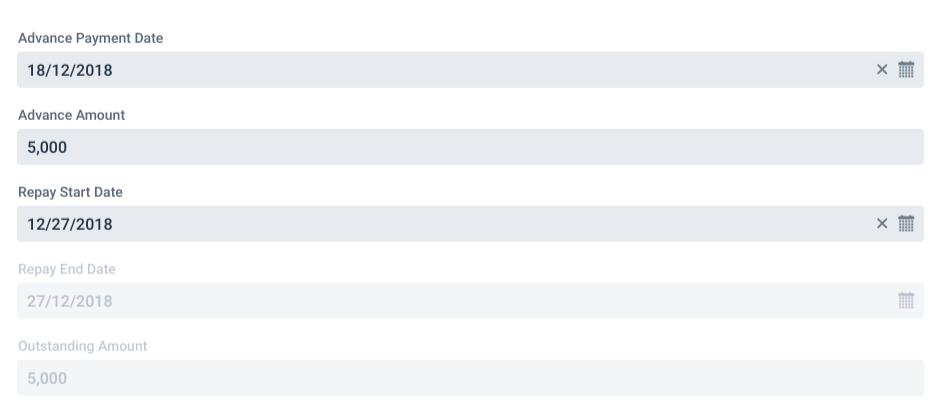

The above code changed seems to be working fine. Thanks for the help. But there is one small problem, the DatePicker component which I have set using setFieldProvider() shows the date format at some instant it shows dd/mm/yyyy and later it displays mm/dd/yyyy, whereas there is another DatePicker field which is added with DefaultFieldProvider shows the date format as dd/mm/yyyy always. I would like have it consistent as dd/mm/yyyy for all the DatePicker fields. I tried setting Locale to Default and UK but still the problem persists. I have attached screenshot.

alabotski · December 21, 2018, 12:42pm

Is it possible to programmatically bring up the table row editing window?

alabotski · December 21, 2018, 2:25pm

How can I display Instant (LocalDateTime) on a popup window (CRUD) just enough for a label to read

alabotski · December 28, 2018, 2:08pm

How I can add own converter?

Binder<UserDto> binder1 = this.buildBinder(operation, domainObject);
BindingBuilder bindingBuilder = binder1.forField(new TextField());
bindingBuilder = bindingBuilder.withConverter(new StringToInstantConverter());
bindingBuilder.bind(UserTotalDto.FIELD_EMAIL_CONFIRMATION_TIME);

But in buildFields it’s override

alejandro.du · January 1, 2019, 4:44pm

Лешик ツ:
Is it possible to programmatically bring up the table row editing window?

I’m affraid there’s no public API for that. Check the GridCrud::addButtonClicked() method and see if you can extend the class and try to expose that method somehow. I haven’t tried this though.

alejandro.du · January 1, 2019, 4:46pm

Лешик ツ:
How can I display Instant (LocalDateTime) on a popup window (CRUD) just enough for a label to read

Can you elaborate please?

alejandro.du · January 1, 2019, 4:51pm

Alejandro Duarte:

Adexe Rivera Martín:
where is the best way, if exist, to convert price fields with currency converter??

If you mean Vaadin’s Converter, currently there’s no API for it in the component. As an alternative, you can create your own CrudFormFactory implementation. If you mean Java’s CurrencyStringConverter you can encapsulate any kind of logic in a custom field.

Лешик ツ:
How I can add own converter?

Binder<UserDto> binder1 = this.buildBinder(operation, domainObject);
BindingBuilder bindingBuilder = binder1.forField(new TextField());
bindingBuilder = bindingBuilder.withConverter(new StringToInstantConverter());
bindingBuilder.bind(UserTotalDto.FIELD_EMAIL_CONFIRMATION_TIME);

But in buildFields it’s override

See:

Alejandro Duarte:

Adexe Rivera Martín:
where is the best way, if exist, to convert price fields with currency converter??

If you mean Vaadin’s Converter, currently there’s no API for it in the component. As an alternative, you can create your own CrudFormFactory implementation. If you mean Java’s CurrencyStringConverter you can encapsulate any kind of logic in a custom field.

Stefan122 · January 25, 2019, 4:52pm

I use Framework 8.6.4 and CrudUi 2.3.
Grid in Framework 8.6 →
Change the return type of Grid.asMultiSelect and Grid.asSingleSelect that has API to access the features of corresponding selection model.
Is this problem fixed?

alejandro.du · January 27, 2019, 5:58pm

Stefan Throm:
I use Framework 8.6.4 and CrudUi 2.3.
Grid in Framework 8.6 →
Change the return type of Grid.asMultiSelect and Grid.asSingleSelect that has API to access the features of corresponding selection model.
Is this problem fixed?

What exactly is the problem with the add on?

Stefan122 · January 28, 2019, 8:54am

I get the following error:

Caused by: java.lang.NoSuchMethodError: com.vaadin.ui.Grid.asSingleSelect()Lcom/vaadin/ui/SingleSelect;
at org.vaadin.crudui.crud.impl.GridCrud.updateButtons(GridCrud.java:128)
at org.vaadin.crudui.crud.impl.GridCrud.initLayout(GridCrud.java:89)
at org.vaadin.crudui.crud.impl.GridCrud.(GridCrud.java:60)
at org.vaadin.crudui.crud.impl.GridCrud.(GridCrud.java:43)

Caused by following command:

orgCrud = new GridCrud<>(Organisation.class, new HorizontalSplitCrudLayout());

Adexe · February 14, 2019, 1:31pm

Hi @alejandro, we need set a combobox value using setFieldProvider, but it doesn’t rendered selected value.

		this.crudFormFactory.setFieldProvider("parent", () -> {
            ComboBox<T> comboBox = new ComboBox<>();
            comboBox.setItems((Collection<T>)trees);
            T value = (T)trees.stream().filter(tree ->this.getSelected().getId().equals(tree.getId())).findAny().get();
            comboBox.setValue(value);
            return comboBox;
        });

Thanks

urosk · February 14, 2019, 6:15pm

Stefan Throm:
I get the following error:

Caused by: java.lang.NoSuchMethodError: com.vaadin.ui.Grid.asSingleSelect()Lcom/vaadin/ui/SingleSelect;
at org.vaadin.crudui.crud.impl.GridCrud.updateButtons(GridCrud.java:128)
at org.vaadin.crudui.crud.impl.GridCrud.initLayout(GridCrud.java:89)
at org.vaadin.crudui.crud.impl.GridCrud.(GridCrud.java:60)
at org.vaadin.crudui.crud.impl.GridCrud.(GridCrud.java:43)

Caused by following command:

orgCrud = new GridCrud<>(Organisation.class, new HorizontalSplitCrudLayout());

I am getting exactly the same error after updating to latest vaadin 8.7.

watho81 · February 27, 2019, 9:47am

Is it possible to set a default value when opening the Dialog for new items? I tried the fieldCreationListener and fieldProvider-methods, but the value gets always overridden.

Vaadin 10

Christian481 · February 27, 2019, 10:12am

Is there a way to support crud of images by displaying a Upload and Image in the form? I tried to integrate the Upload but it doesn’t implement the required HasValueAndElement interface.

Have you tried creating a custom field for that? https://vaadin.com/components/vaadin-custom-field/java-examples

alejandro.du · March 15, 2019, 9:29am

Stefan Throm:
I get the following error:

Caused by: java.lang.NoSuchMethodError: com.vaadin.ui.Grid.asSingleSelect()Lcom/vaadin/ui/SingleSelect;
at org.vaadin.crudui.crud.impl.GridCrud.updateButtons(GridCrud.java:128)
at org.vaadin.crudui.crud.impl.GridCrud.initLayout(GridCrud.java:89)
at org.vaadin.crudui.crud.impl.GridCrud.(GridCrud.java:60)
at org.vaadin.crudui.crud.impl.GridCrud.(GridCrud.java:43)

Caused by following command:

orgCrud = new GridCrud<>(Organisation.class, new HorizontalSplitCrudLayout());

This should be fixed in the latest versions of the add-on. Cheers!

alejandro.du · March 15, 2019, 9:55am

Thomas Wagner:
Is it possible to set a default value when opening the Dialog for new items? I tried the fieldCreationListener and fieldProvider-methods, but the value gets always overridden.

Vaadin 10

Fixed. You should be able to use a FieldCreationListener to set the field value in v3.8.1. For example:

formFactory.setFieldCreationListener(CrudOperation.ADD, "name", f -> f.setValue("default name"));
