View navigation with Vaadin Designer

View navigation with Vaadin Designer

In this tutorial you will learn how to set up event listeners to handle user input, and leverage those event listeners to build navigation between views. This tutorial assumes you have Vaadin plugin and Vaadin Designer installed. You should be familiar with using design templates, which is a topic described in our previous tutorial. The code samples in this tutorial are written using Java 8. Let’s get started.

Creating your designs

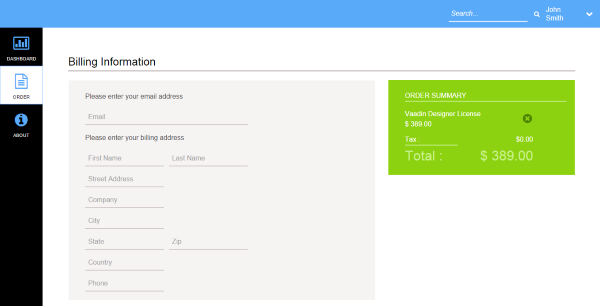

At first you need some views. The fastest way is to use the set of templates available here. Create your application’s main view using the template called NavigationTemplateVaadin. Name your design as MainViewDesign. Create two other views using the templates called FormTemplateVaadin and DashboardTemplateVaadin. Name your views OrderViewDesign and DashboardViewDesign respectively. In addition, create a design called AboutViewDesign containing only a VerticalLayout.

Basic navigation

Vaadin Designer will automatically update the design Java file when you change your design html. It also means that you should not touch the auto-generated Java file, because your changes will be overwritten. Instead what you want to do is extend the class and hook up your event listeners there. Create a new class called MainView and extend it from MainViewDesign and repeat the same thing to the other design files, too. From the companion java file you can see that for every Component you have in your design, a field of that type is declared. The fields have an access modifier protected.

In the UI class, set the application’s initial content

@Override
protected void init(VaadinRequest vaadinRequest) {
    setContent(new MainView());
}

In the MainView, add click listeners to buttons in the navigation sidebar

public class MainView extends MainViewDesign {

    public MainView() {
        menuButton1.addClickListener(event -> scroll_panel.setContent(new DashboardView());
        menuButton2.addClickListener(event -> scroll_panel.setContent(new OrderView());
        menuButton3.addClickListener(event -> scroll_panel.setContent(new AboutView());
    }
}

This version of navigation works, but it doesn’t allow to use the browser’s back button. You can make the navigation more comprehensive by using a Navigator. I’ll show you how to do that next.

Improved navigation

To create a more comprehensive navigation you should use a Navigator. The Navigator uses URL fragments for selecting the active view and because of that the back button and navigating with a URL works. First you need to change your DashboardView, OrderView and AboutView to implement the com.vaadin.navigator.View interface. The Navigator uses String view names to identify the views, so to make your life easier later, add a public view name field to each of the sub-views.

public class DashboardView extends DashboardViewDesign implements View {
    public static final String VIEW_NAME = "dashboard";

    @Override
    public void enter(ViewChangeEvent event) {

    }
}

Now your sub-views are ready to be used with a Navigator. Next you need to create a navigator and attach it to your UI with a designated area to the sub-views. The MainViewDesign has a Panel called scroll_panel which is perfect for displaying the views.

Here is the new MainView constructor

public MainView() {
    Navigator navigator = new Navigator(UI.getCurrent(), scroll_panel);
}

Add views to the navigator. And navigate to the DashboardView.

public MainView() {
    Navigator navigator = new Navigator(UI.getCurrent(), scroll_panel);
    navigator.addView(DashboardView.VIEW_NAME, DashboardView.class);
    navigator.addView(OrderView.VIEW_NAME, OrderView.class);
    navigator.addView(AboutView.VIEW_NAME, AboutView.class);
    if (navigator.getState().isEmpty()) {
        navigator.navigateTo(DashboardView.VIEW_NAME);
    }
}

Then add a click listener and invoke a navigation method to handle calling the navigator.

public MainView() {
    Navigator navigator = new Navigator(UI.getCurrent(), scroll_panel);
    navigator.addView(DashboardView.VIEW_NAME, DashboardView.class);
    navigator.addView(OrderView.VIEW_NAME, OrderView.class);
    navigator.addView(AboutView.VIEW_NAME, AboutView.class);
    if (navigator.getState().isEmpty()) {
        navigator.navigateTo(DashboardView.VIEW_NAME);
    }
    menuButton1.addClickListener(event -> doNavigate(DashboardView.VIEW_NAME));
    menuButton2.addClickListener(event -> doNavigate(OrderView.VIEW_NAME));
    menuButton3.addClickListener(event -> doNavigate(AboutView.VIEW_NAME));
}

private void doNavigate(String viewName) {
    UI.getCurrent().getNavigator().navigateTo(viewName);
}

Now the navigation is done properly and you can test it out. There is still a slight issue with the selected/unselected menu item style. Let’s fix that next.

Adding final touches

The menu button matching the active view should have the selected style and the rest of the menu buttons should not have it. It’s worth noting that the view can be navigated to by clicking a button or by entering a URL, so it’s not enough to handle the selected style only in the button click listener. The displayed view needs to be mapped to a button somehow. The following implementation is just one way to achieve this. It looks fairly complicated, so I’m sure you can come up with a better solution if you try.

public class MainLayout extends MainLayoutDesign implements ViewDisplay {

    private static final String STYLE_SELECTED = "selected";
    private Navigator navigator;

    public MainLayout() {
        navigator = new Navigator(UI.getCurrent(), (ViewDisplay) this);
        addNavigatorView(DashboardView.VIEW_NAME, DashboardView.class, menuButton1);
        addNavigatorView(OrderView.VIEW_NAME, OrderView.class, menuButton2);
        addNavigatorView(AboutView.VIEW_NAME, AboutView.class, menuButton3);
        if (navigator.getState().isEmpty()) {
            navigator.navigateTo(DashboardView.VIEW_NAME);
        }
    }

    private void doNavigate(String viewName) {
        getUI().getNavigator().navigateTo(viewName);
    }

    private void addNavigatorView(String viewName,
            Class<? extends View> viewClass, Button menuButton) {
        navigator.addView(viewName, viewClass);
        menuButton.addClickListener(event -> doNavigate(viewName));
        menuButton.setData(viewClass.getName());
    }

    private void adjustStyleByData(Component component, Object data) {
        if (component instanceof Button) {
            if (data != null && data.equals(((Button) component).getData())) {
                component.addStyleName(STYLE_SELECTED);
            } else {
                component.removeStyleName(STYLE_SELECTED);
            }
        }
    }

    @Override
    public void showView(View view) {
        if (view instanceof Component) {
            scroll_panel.setContent((Component) view);
            Iterator it = side_bar.iterator();
            while (it.hasNext()) {
                adjustStyleByData(it.next(), view.getClass().getName());
            }
        } else {
            throw new IllegalArgumentException("View is not a Component");
        }
    }
}

In this last iteration I use AbstractComponent’s setData and getData method to store the view class name and map it to the button to be highlighted. I also changed the MainLayout to be a com.vaadin.navigator.ViewDisplay and highlight the button in the showView implementation. Ok, maybe that was more complicated than it should be, but now both clicking a menu button and navigating using a URL changes the selected style of the button in question. Great job!

See the example code at GitHub

0 Attachments
15710 Views
Average (3 Votes)
Comments
Add Comment
Posted on 11/7/15 1:23 PM.
Posted on 3/28/16 6:40 AM.
Good stuff..I found out the hard way that this example omits a huge side effect of this code. Every time a button link is clicked a new instance of the view is generated. If you do not want a new instance of the View class instantiated when the button is clicked it is best to use the method signature addView(String viewName, View view) instead of addView(String viewName, Class<? extends View> viewClass). I hope this helps someone else out there.
Posted on 12/21/16 10:11 PM.
You are right. Thank you for the addition. In my experience, creating new instances when navigating to a view is most of the time the desired option. Adding the view instances loads all views to memory, which for larger menu structures is perhaps not the optimal solution from memory consumption point of view.

I'm curious, what was the side-effect from creating view instances every time?
Posted on 12/22/16 5:23 AM in reply to Eric Dobbs.
