Maven Multi-module production build

thowimmer · November 5, 2024, 10:35am

Hi Vaadin community,

When I’m packaging my Maven multi-module Hilla app as a production build, the theme is missing in the final fat-jar.

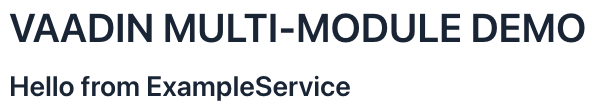

Expected result (running ./mvnw spring-boot:run):

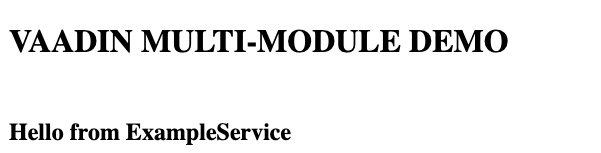

Actual result (./mvnw clean package -Pproduction && java -jar application/target/application-0.0.1.jar):

Notes:
I noticed that the final fat-jar does not contain any Vaadin meta-files/resources:

❯ unzip -l application/target/application-0.0.1.jar| grep 'META-INF'
        0  11-05-2024 07:59   META-INF/
      459  11-05-2024 07:59   META-INF/MANIFEST.MF
        0  02-01-1980 00:00   META-INF/services/
       66  02-01-1980 00:00   META-INF/services/java.nio.file.spi.FileSystemProvider
        0  11-05-2024 07:59   META-INF/maven/
        0  11-05-2024 07:59   META-INF/maven/com.thowimmer/
        0  11-05-2024 07:59   META-INF/maven/com.thowimmer/application/
     1688  11-05-2024 07:09   META-INF/maven/com.thowimmer/application/pom.xml
       59  11-05-2024 07:59   META-INF/maven/com.thowimmer/application/pom.properties

wheres the jar of my module containing frontend folder does contain some Vaadin specific meta-files/resource:

❯ unzip -l views/target/views-0.0.1.jar | grep 'META-INF'
        0  11-05-2024 07:59   META-INF/
      141  11-05-2024 07:59   META-INF/MANIFEST.MF
        0  11-05-2024 07:59   META-INF/VAADIN/
        0  11-05-2024 07:59   META-INF/VAADIN/config/
        0  11-05-2024 07:59   META-INF/VAADIN/webapp/
        0  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/
        0  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/build/
        0  11-05-2024 07:59   META-INF/maven/
        0  11-05-2024 07:59   META-INF/maven/com.thowimmer/
        0  11-05-2024 07:59   META-INF/maven/com.thowimmer/views/
   409050  11-05-2024 07:59   META-INF/VAADIN/config/bundle-size.html
      180  11-05-2024 07:59   META-INF/VAADIN/config/flow-build-info.json
     3089  11-05-2024 07:59   META-INF/VAADIN/config/stats.json
      586  11-05-2024 07:59   META-INF/VAADIN/webapp/index.html
    40894  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/build/FlowClient-CFpeFTrH.js.br
    39940  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/build/generated-flow-imports-Ba018pJ8.js
     1282  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/build/FlowBootstrap-BRNFttkU.js.br
   142183  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/build/FlowClient-CFpeFTrH.js
   394185  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-UV-vEubm.js
     9603  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/build/generated-flow-imports-Ba018pJ8.js.br
   106435  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-UV-vEubm.js.br
     3739  11-05-2024 07:59   META-INF/VAADIN/webapp/VAADIN/build/FlowBootstrap-BRNFttkU.js
      271  11-05-2024 07:59   META-INF/VAADIN/webapp/index.html.br
       91  11-05-2024 07:59   META-INF/VAADIN/file-routes.json
     2747  11-05-2024 07:09   META-INF/maven/com.thowimmer/views/pom.xml
       53  11-05-2024 07:59   META-INF/maven/com.thowimmer/views/pom.properties

Resources:

I’d be glad if you can point me to the missing piece

Thanks!

Artur · November 5, 2024, 10:38am

Try moving the theme from views/src/main/frontend/themes/example-theme to views/src/main/META-INF/resources/frontend/themes/example-theme so it will be packaged in the JAR

thowimmer · November 5, 2024, 10:54am

Hi Artur,

many thanks for your prompt reply!
Unfortunately the theme is still not part of the final jar of the ‘application’ module.
Here’s what I did:

mv views/src/main/frontend/themes/example-theme views/src/main/META-INF/resources/frontend/themes/example-theme
./mvnw clean package -Pproduction

unzip -l application/target/application-0.0.1.jar| grep 'META-INF'
        0  11-05-2024 11:48   META-INF/
      459  11-05-2024 11:48   META-INF/MANIFEST.MF
        0  02-01-1980 00:00   META-INF/services/
       66  02-01-1980 00:00   META-INF/services/java.nio.file.spi.FileSystemProvider
        0  11-05-2024 11:48   META-INF/maven/
        0  11-05-2024 11:48   META-INF/maven/com.thowimmer/
        0  11-05-2024 11:48   META-INF/maven/com.thowimmer/application/
     1688  11-05-2024 11:41   META-INF/maven/com.thowimmer/application/pom.xml
       59  11-05-2024 11:48   META-INF/maven/com.thowimmer/application/pom.properties

How can I ensure that the views/target/classes/META-INF/VAADIN is considered in the repacking happening in the application module (using the spring-boot-maven-plugin)?

thowimmer · November 5, 2024, 1:10pm

I just noticed that the issue might be related to the index*.css not being part of the build output in my multi-module scenario:

Single module build:

unzip -l target/vaadin-single-module-0.0.1.jar | grep 'index'
      669  11-05-2024 13:46   META-INF/VAADIN/webapp/index.html
        0  11-05-2024 13:46   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-B_SY1GJM.css
        1  11-05-2024 13:46   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-B_SY1GJM.css.br
   465718  11-05-2024 13:46   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-JpDjlFtk.js
   115167  11-05-2024 13:46   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-JpDjlFtk.js.br
      267  11-05-2024 13:46   META-INF/VAADIN/webapp/index.html.br

Multi-module build (just the views.jar):

❯ unzip -l views/target/views-0.0.1.jar| grep 'index'
      586  11-05-2024 14:02   META-INF/VAADIN/webapp/index.html
   394185  11-05-2024 14:02   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-UV-vEubm.js
   106435  11-05-2024 14:02   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-UV-vEubm.js.br
      271  11-05-2024 14:02   META-INF/VAADIN/webapp/index.html.br

Any thoughts @Artur ?

thowimmer · November 6, 2024, 9:36am

I created a simpler project to reproduce it:
GitHub - thowimmer/vaadin-hilla-multimodule-theme: Example Maven multi-module packaging of a Vaadin Hilla webapp.

main branch: multi module setup (app = create bundle; presentation = contain vaadin view & theme)
single-module branch: single module setup (contains exactly the same files as in multi-module setup)

When running ./mvnw clean package -Pproduction the output is different for either setup:

single-module:

❯ unzip -l target/vaadin-multi-module-0.0.1.jar | grep 'index'
      669  11-06-2024 10:23   META-INF/VAADIN/webapp/index.html
       40  11-06-2024 10:23   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-BaMXoIpY.css.br
   465942  11-06-2024 10:23   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-B4cZbuEf.js
   113981  11-06-2024 10:23   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-B4cZbuEf.js.br
       36  11-06-2024 10:23   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-BaMXoIpY.css
      265  11-06-2024 10:23   META-INF/VAADIN/webapp/index.html.br

multi-module:

❯ unzip -l presentation/target/presentation-0.0.1.jar | grep 'index'
      586  11-06-2024 10:26   META-INF/VAADIN/webapp/index.html
   104217  11-06-2024 10:26   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-DUMlgTCX.js.br
   386208  11-06-2024 10:26   META-INF/VAADIN/webapp/VAADIN/build/indexhtml-DUMlgTCX.js
      239  11-06-2024 10:26   META-INF/VAADIN/webapp/index.html.br

The multi-module build does not contain the css file generated by Vite.

Is this a known issue?

marcoc_753 · November 6, 2024, 7:04pm

I think that the problem is that you have the @Theme annotation in the app module, but you run the build-frontend in the presentation module.
This way the Vaadin maven plugin cannot find the theme annotation.

thowimmer · November 7, 2024, 8:27am

Hi @marcoc_753,

you are indeed right!

Solution
The AppShellConfigurator with the @Theme annotation has to reside in the module where the Vaadin Maven Plugin is applied.

Fix
Created a dedicated class which implements the AppShellConfigurator interface within the presentation module:
